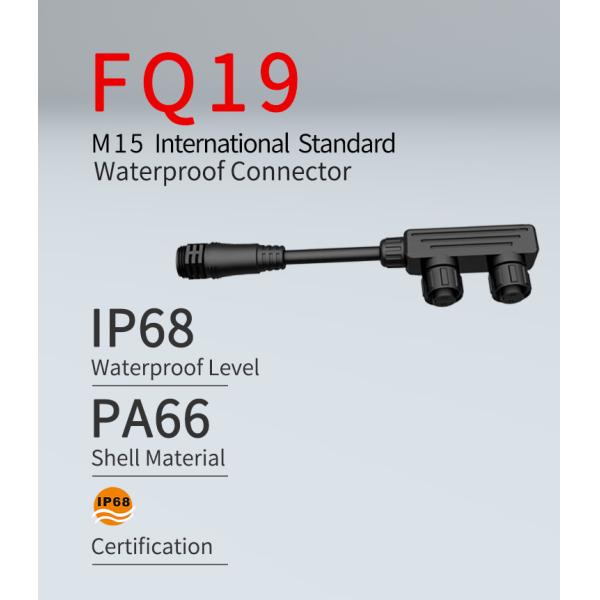

M15 Connector F Shape 2 Pin IP68 Waterproof Connector 1 In 2 Out F Shape Connector
Product introduction
1.M15 waterproof connectors.
2.IP68 waterproof rating.
3.Male female plug with cable.
4.M15 standard connectors for street lighting engineering.
Product Parameter
| Item Name | F Shape Waterproof LED Modules Connector For Street Light | Connecting Code | Thread Locking |
| Current Rating | 15A | Operating Temperature | -40℃--105℃ |
| Operating Voltage | 300V | Wire OD | 8.5 mm |
| Mechanical Life | 1500 mating cycles | Contact Pin Material | Gold plated brass |
| Contact Resistance | ≤5mΩ | Shell Material | Nylon(PA66) |
| Contacts Numbers | 1 in 2 out | Waterproof Level | IP68 |
| Cable Specification | 2.5m㎡ | Certification | IP68 |
WHY CHOOSE US?
Shenzhen HuaYi-FaDa Technology (also known as Shenzhen 2IN1 Technology) is a professional manufacturer with over 12 years FACTORY experience for waterproof connectors.
100% Guarantee Qualtiy
•Manufactured Under Strict Control
•100% Tested (Not Just Batch Tested)
•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years
•Quality Guarantee: 3 Years
Competitive Price And Service
•Free Samples Available:3-5 PCS of each part number
•Delivery Time: 2-3 Weeks After Orders
•OEM, ODM Service As Per Customer's Requirements
•Competitive Price
Professional Certification
•TUV Certification
•RoHS Compliance
•ISO 9001:2008
•UL Certification
FAQ
Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
